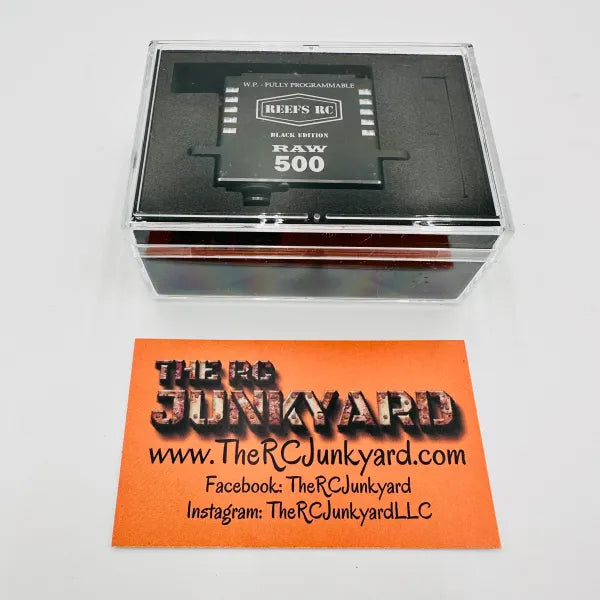

Reefs RC RAW500 BLACK EDITION

The servo that changed the game is now available in BLACK! The RAW500 is a powerhouse of a servo that has proven itself time and time again. There's a reason it's our most recommended servo. SPECIFICATIONS: SUBMARINE WATERPROOF: 7 Point Seals Magnetic Angle Sensor Pulse Width Modulation Control Fully Programmable w/ REEFS Software (REEFS USB LINK required) Voltage: 4.8V - 8.4V Internal: Steel Gears / All CNC Aluminum REEFS Case Bearing Type: 2 Ball Bearings / Weight: 2.75oz Dimensions: 1.57 x .79 x 1.5 (LWH) Torque: 450oz @ 6v/ 500oz @7.4v/ 565oz @8.4v Speed: .11sec @6v/.095sec @7.4v/.08sec @8.4v Spline: 25T Dead Band Width: 2¦Ìs BEC Not Required (Recommended for best performance) Unload Current: 320mA @ 6.0V / 360mA @ 7.4V / 400mA @ 8.4V Loading Current: 4000mA @ 6.0V / 4300mA @ 7.4V / 4600mA @ 8.4V For programming, the USB Link is required.
